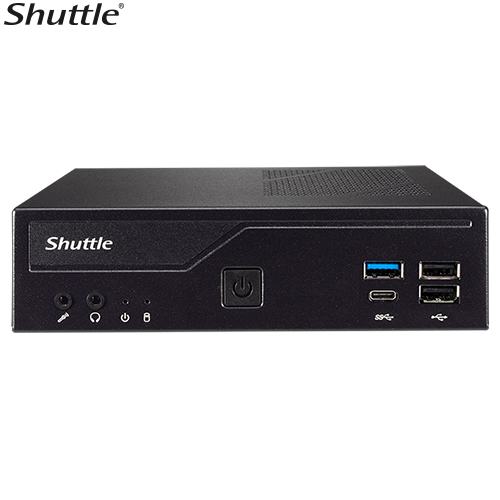

Shuttle DH610V2 DH610 V2 Slim Mini PC 1L Barebone

The Shuttle DH610, a 1-liter Slim model, effortlessly accommodates 14th Gen Intel® Core™ Desktop and 13th/12th Gen processors via the LGA1700 socket. Featuring Intel®’s hybrid architecture design, dual-channel DDR4-3200 memory (Max. 64GB), and integrated UHD Graphics 700 series, this model delivers reliable performance suitable for office use, digital signage, kiosks, and other multi-platform AI deployments. Moreover, the DH610 supports up to three displays via one HDMI 2.0b and two DisplayPort interfaces and provides comprehensive connectivity, enhancing productivity and flexibility!
– Support Intel 12/13/14th LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor
– Supports up to 96GB DDR5 memory
– Supports three independent displays via one HDMI 2.0b and two DisplayPort
– Flexible connectivity: one M.2 2280 M Key (PCIe 4.0 x4/SATA), one M.2 2230 E
– USB 3.2 Gen1(Including one Type-C), four USB 2.0, and two RS232
– Intel® 2.5GbE + Intel® 1GbE LAN that supports Wake On Lan and Teaming Mode
CPU
Support Intel 12/13/14th LGA1700 socket Core i3/i5/i7/i9, Pentium, Celeron 65W processor
Chipset
Intel® H610
Video Engine Processor
Intel® UHD Graphics series
Memory
2 x DDR5, Max. 96GB
Storage
1 x 2.5″ HDD/SSD (max. 12.5 mm) 1 x SD card
Expansion Slots
1 x M.2 2280, M Key 1 x M.2 2230, E Key
Video Output
1x HDMI Port
2x DisplayPort
1x VGA Port (Optional)
2x USB 3.2 Gen1/Gen2 (Front)
2x USB 2.0 (Front)
2x USB 3.2 Gen1/Gen2 (Rear)
2x USB 2.0 (Rear)
1x COM Port
1 x RS232/422/485, Support 5V/12V’
1x Line out/Mic in
Network LAN
1 x Intel® 1G LAN
1 x Intel® 2.5G LAN’
Wifi
Optional
VESA
Bracket included
