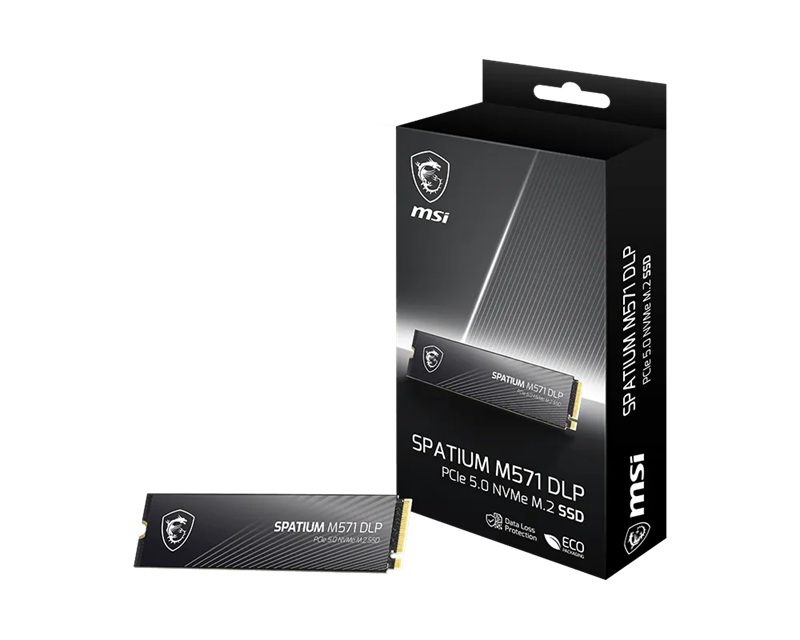

MSI SPATIUM M571 DLP PCIe 5.0 NVMe M.2 4TB, PCIe 5.0×4, NVMe 2.0, M.2 2280, Phison E28, 14500/11000MB/s, 2600K IOPS, 2800TBW, 5yr wty

MSI SPATIUM M571 DLP PCIe 5.0 NVMe M.2 4TB, PCIe 5.0×4, NVMe 2.0, M.2 2280, Phison E28, 14500/11000MB/s, 2600K IOPS, 2800TBW, 5yr wty

SPECIFICATIONS
Model Name SPATIUM M571 DLP PCIe 5.0 NVMe M.2
Capacity 4TB
Controller PHISON E28
Flash Memory 3D NAND
DRAM Cache 4GB LPDDR4
Form Factor M.2 2280
Interface PCIe Gen5x4, NVMe 2.0
Compatibility PCIe Gen5 / Gen4 / Gen3 / Gen2 / Gen1
Dimensions 80.00mm (L) x 22.00mm (W) x 2.15mm (H)
Sequential Read up to (MB/s) 14500
Sequential Write up to (MB/s) 11000
Random Read 4KB up to (IOPS) 2600K
Random Write 4KB up to (IOPS) 2600K
Maximum Operating Power(W) 6.5
Idle Power PS3 (mW) 30
Low Power L1.2 (mW) 5
Operating Temperatures 0°C – 70°C
Storage Temperatures -40°C – 85°C
Terabytes Written (TBW) 2800
Mean Time Between Failure (MTBF) Up to 1,500,000 Hours
Limited Warranty 5 Years, or the coverage for the maximum TBW as stated, whichever comes first.

Advanced Features
Wear Leveling (Extends NAND flash
lifespan)
Bad Block Management (Prevent unstable
data storage)
Over-Provision (Improve performance,
endurance, and reduce write amplification)
Firmware Upgrade (Updates device
instructions to add features, fix issues, and
enhance performance)
TRIM (Performance Optimization, OS support
required)
SMART (Self-Monitoring, Analysis and
Reporting Technology)
