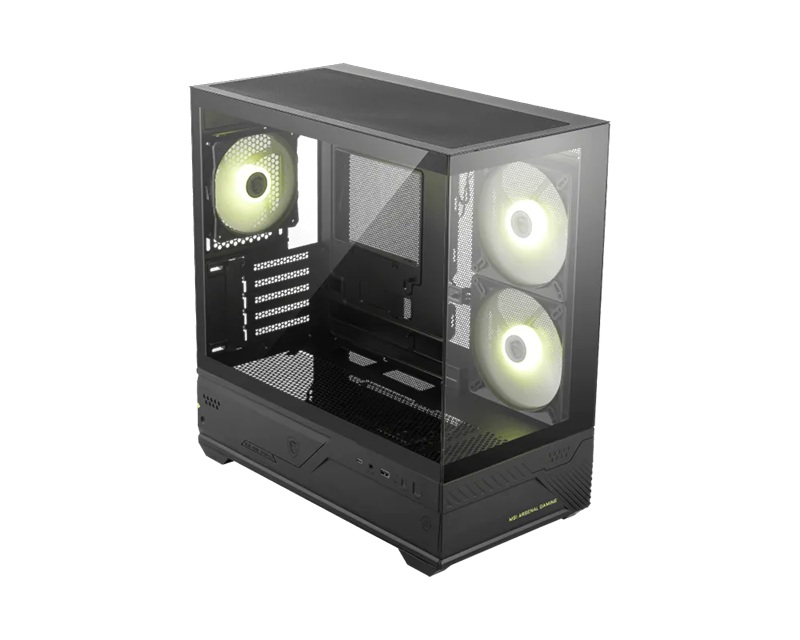

MSI MAG PANO M110R – Black, Mini Tower, 270° Panoramic Glass, Micro-ATX/Mini-ITX, 3x ARGB Fans, 360mm Radiator, 410mm GPU, USB-C, 5 Expansion Slots

MSI MAG PANO M110R – Black

The MAG PANO M110R is a compact mini-tower with a 270-degree panoramic design, dual 140 mm ARGB side fans, and a 1-to-4 ARGB control board – built to showcase your build with effortless customization.

MAG PANO M110R
•270-Degree Display: A 270-degree panoramic design delivers an immersive, edge-to-edge view, transforming your PC into a stunning visual centerpiece.
•Upgraded Airflow Layout: Supports up to nine fans and provides one 360 mm radiator mounting position. Ventilation on the side panel further enhances heat dissipation for optimal performance.
•1 to 4 ARGB Control board: Supports up to four independent ARGB + PWM fans, delivering clean cable management and effortless installation.
•Tool-free Panels: The front and side tempered panels are easily removable, giving you unobstructed access when installing side fans and radiators.
•ARGB Fan: Built-in dual 140 mm ARGB fans on the side and a 120 mm ARGB fan at the rear deliver striking lighting and vivid lighting effects.

SPECIFATION
Product Name MAG PANO M110R
Case Form Factor Mini Tower
Motherboard Form Factor Support Micro-ATX, Mini-ITX

I/O Ports
1 x USB 20Gbps (Type-C)
1 x Mic In / Audio Out
1 x USB 5Gbps (Type-A)
1 x LED Switch Button
1 x Power Button

Drive Mount Support
1 x 2.5′
1 x 3.5′
2 x 2.5′ / 3.5′ Combo

Expansion Slots 5
Maximum GPU Length 410 mm / 16.14 inches
Maximum CPU Cooler Height 165 mm / 6.50 inches
Power Supply Support ATX
Maximum PSU Length 200 mm / 7.87 inches

Fan Size Support
Top: 3 x 120 mm / 2 x 140 mm
Front: N/A
Rear: 1 x 120 mm
Side: 2 x 120 mm / 2 x 140 mm
Bottom: 3 x 120 mm

Pre-installed Fan Type
Side: 2 x 140 mm ARGB Fan (Reverse Blades Fan)
Rear: 1 x 120 mm ARGB Fan

Radiator Size Support
Top: 120 / 140 / 240 / 280 / 360 mm
Front: N/A
Rear: 120 mm
Side: 120 / 240 mm
Bottom: N/A

Dimensions (DxWxH) 434 x 225 x 444 mm / 17.09 x 8.86 x 17.48 inches
Net Weight 5.7 kg / 12.57 lbs
Gross Weight 8.0 kg / 17.64 lbs
