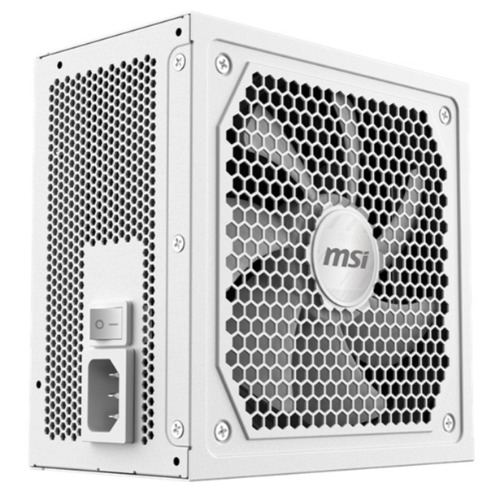

MSI MAG A1000GL PCIE5 WHITE MAG A1000GL PCIE5 ATX Power Supply Uni

MSI MAG A1000GL PCIE5 ATX Power Supply Uni – White, 1000W, 80+ Gold, Fully Modular, PCIe5 600W, 135mm FDB Fan, Active PFC, 100-240V, 10yr wty, OCP/UVP
The MAG A1000GL PCIE5 WHITE power supply provides 80 PLUS Gold-certified power efficiency, ATX 3.1 ready, and PCIe 5.1 GPU support, cooled by a 135 mm fluid dynamic bearing (FDB) fan for superior performance. Outfitted with a half-bridge LLC DC-to-DC topology, an extra-compact ATX frame, and a fully modular design, this PSU is ideal for spatially-efficient PCs requiring robust, no-nonsense performance.
SPECIFICATIONS:
Efficiency Rating
80 PLUS Gold (up to 90%)
Modular
Yes (fully modular)
Fan Size
135 mm
Fan Bearing
Fluid Dynamic Bearing
Dimensions (DxWxH)
150 x 150 x 86 mm
PFC Type
Active PFC
Input Voltage Range
100-240V~
Power Watt
1000W
Power Excursion
2000W (*up to 200% of the PSU’s rated power for 100μs)
Input Frequency Range
50-60Hz
Protection
OCP / OVP / OPP / OTP / SCP / UVP
ATX (24 pin)
1
EPS (4+4 pin)
2
PCI-E 5.1 (16 pin)
1 (600W)
PCI-E (6+2 pin)
4
SATA (15 pin)
12
PERIPHERAL (4 pin)
4
FDD (4 pin)
1
