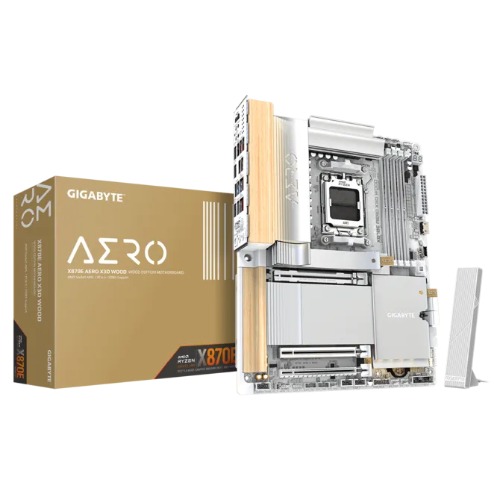

Gigabyte X870E AERO X3D WOOD AM5 DDR5 256GB USB4 Wi-Fi7 MT7927, RZ738 5GbE PCIe5 M.2 PCIe5/4 HDMI ALC1220 ATX

Gigabyte X870E AERO X3D WOOD AM5 DDR5 256GB USB4 Wi-Fi7 MT7927, RZ738 5GbE PCIe5 M.2 PCIe5/4 HDMI ALC1220 ATX

CPU
AMD Socket AM5, support for:
AMD Ryzen™ 9000 Series Processors/
AMD Ryzen™ 8000 Series Processors/
AMD Ryzen™ 7000 Series Processors

Chipset
AMD X870E

Memory
4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Audio
Realtek® ALC1220 CODEC

LAN
2 x Realtek® 5GbE LAN chips (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU
1 x PCI Express x16 slot (PCIEX8), integrated in the CPU
Chipset:
– 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Storage Interface
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs
2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors

USB
CPU+ASMedia USB4® controller:
– 2 x USB4® USB Type-C® ports on the back panel
CPU:
– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Chipset+USB 3.2 Gen 1 Hub:
– 4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset:
– 2 x USB Type-C® ports, with USB 3.2 Gen 2×2 support (1 port on the back panel, 1 port available through the internal USB header)
– 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
– 3 x USB 3.2 Gen 1 ports on the back panel
– 4 x USB 2.0/1.1 ports available through the internal USB headers

Operating System
Support for Windows 11 64-bit
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
