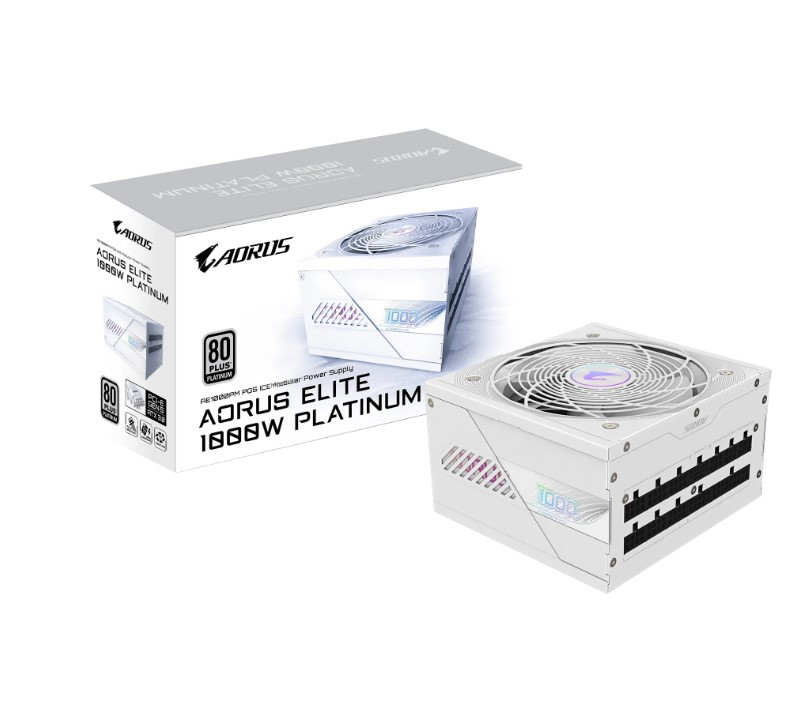

Gigabyte GP-AE1000PM PG5 ICE 1000W PSU Power Supply

Gigabyte GP-AE1000PM PG5 ICE 1000W PSU Power Supply, ATX 60-50 Hz 1000W 120mm Fan 80 PLUS Platinum >100,000 hours
Model GP-AE1000PM PG5 ICE
Type Intel Form Factor ATX 12V v3.0
PFC Active PFC (>0.9 typical)
Input Voltage 100-240 Vac (full range)
Input Current 15-6.5A
Input Frequency 60-50 Hz
Output Capacity 1000W
Dimension 150 x 140 x 86mm
Fan Type 120mm Fluid Dynamic Bearing (FDB) Fan
80 PLUS Platinum
Efficiency 92% at typical load
MTBF >100,000 hours
Protection OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal 100-150ms
Hold Up Time >16ms
Cable Type Flat, All white
Connectors
ATX/MB 20+4 Pin x 1 : 650mm*1
CPU/EPS 4+4 Pin x 2 : 700mm*2
PCI-e 16 Pin x 1: 700mm*1
PCI-e 6+2 Pin x 6 : 650mm+150mm*2, 750mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2
4 Pin Peripheral x 4 : 500mm+150mm+150mm+150mm*1
