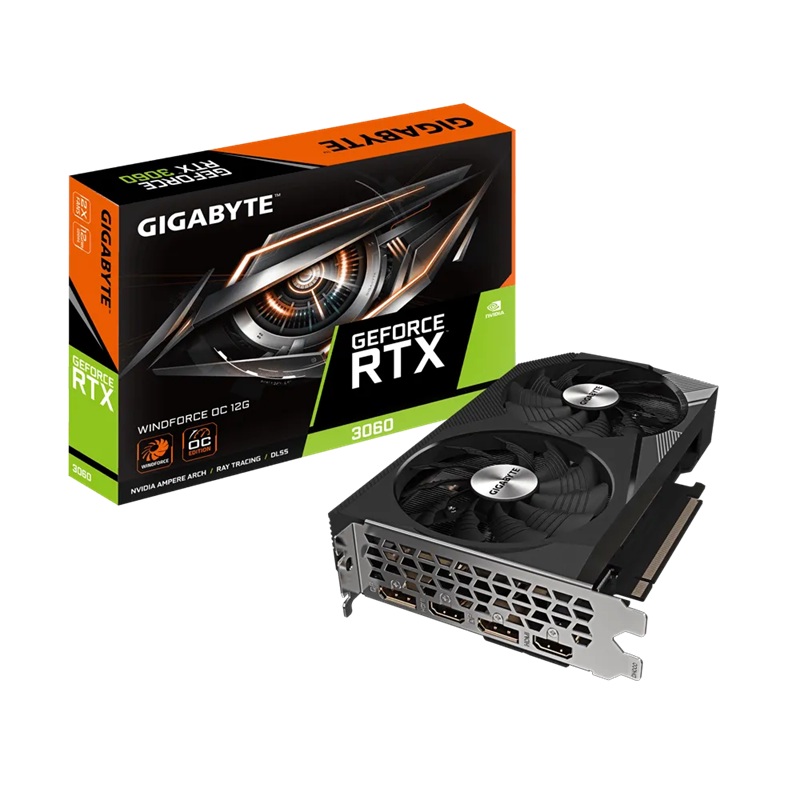

Gigabyte GeForce RTX™ 3060 WINDFORCE OC 12G 2.0, 1792 MHz, CUDA 3584, 15000 MHz, GDDR6, 192 bit, PSU 550W, 8 pin*1, DisplayPort 1.4a *2 HDMI 2.1 *2

Gigabyte GeForce RTX™ 3060 WINDFORCE OC 12G 2.0, 1792 MHz, CUDA 3584, 15000 MHz, GDDR6, 192 bit, PSU 550W, 8 pin*1, DisplayPort 1.4a *2 HDMI 2.1 *2

SPECIFICATION

Graphics Processing
GeForce RTX™ 3060

Core Clock
1792 MHz (Reference Card: 1777 MHz)

CUDA® Cores
3584

Memory Clock
15000 MHz

Memory Size
12 GB

Memory Type
GDDR6

Memory Bus
192 bit

Memory Bandwidth (GB/sec)
360 GB/s

Card Bus
PCI-E 4.0 x 16

Digital max resolution
7680×4320

Multi-view
4

Card size
L=198 W=121 H=39 mm

PCB Form
ATX

DirectX
12 Ultimate

OpenGL
4.6

Recommended PSU
550W

Power Connectors
8 pin*1

Output
DisplayPort 1.4a *2
HDMI 2.1 *2

KEY FEATURE
•NVIDIA Ampere Streaming Multiprocessors
•2nd Generation RT Cores
•3rd Generation Tensor Cores
•Powered by GeForce RTX™ 3060
•Integrated with 12GB GDDR6 192-bit memory interface
•WINDFORCE 2X Cooling System with alternate spinning fans
•Screen cooling
•200 mm compact card size
•Limited Hash Rate version
