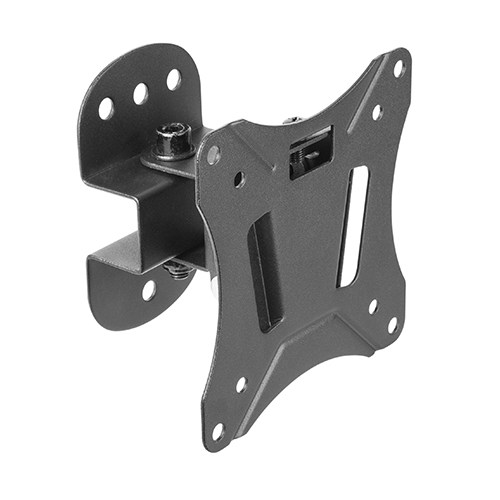

Brateck KMA21-110 LCD Economy Pivot TV Wall Mount Bracket

The new model KMA21-110 is an ideal solution for most 13″-27″ flat panel TVs up to 25kgs/55lbs. The convenient swivel & tilt adjustments at the joint allows you to adjust the TV angle to get the optimum viewing angle: whether it’s avoiding glare or positioning it towards the sofa for the perfect view, from anywhere in the room. VESA compatible with 75×75, 100×100.
FEATURES
●Easy-Grip Knobs: for quick tilt and lock
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Easy Assembly: Installation is as easy as 1-2-3
SPECIFICATIONS
Product Category: Pivot TV Wall Mount
Rank: Standard
Material: Steel
Metal Sheet Thickness: Wall Plate THK=2mm cold-rolled sheet,VESA Panel THK=1.5mm cold-rolled sheet (Wall Plate THK=0.079″ cold-rolled sheet,VESA Panel THK=0.059″ cold-rolled sheet)
Surface Finish: Powder Coating
Color: Fine Texture Black
Dimensions: 115x115x76mm (4.5’x4.5’x3″)
Fit Screen Size: 13″-27″
Fit Curved TV: No
Mounting Hole Pattern : VESA Only
VESA Compatible: 75×75,100×100
Max. VESA: 100×100
Weight Capacity: 25kg (55lbs)
Strength Tested: 2 Times Approved
Profile: 76mm (3″)
Tilt Range: ＋7.5°～-7.5°
Swivel Range: +25°~-25°
Screen Freely Tilting: No
Installation: Solid Wall,Single Stud
Panel Type: Detachable Panel
Wall Plate Type: Fixed Wall Plate
Cable Management: No
Anti-theft: No
Bubble Level: No
Accessory Kit Package: Compartment Polybag
