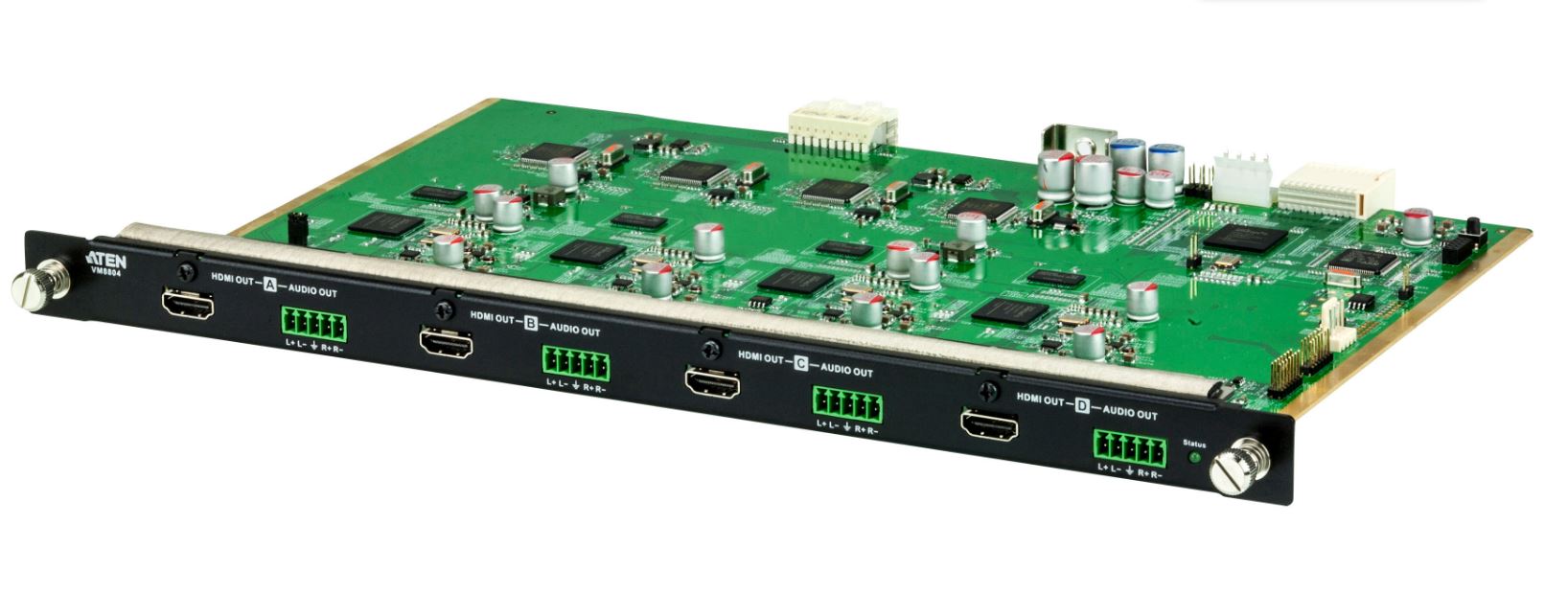

Aten VM8804-AT 4 Port HDMI Output Board for VM1600A/VM3200

Aten 4 Port HDMI Output Board for VM1600A/VM3200
HDMI (3D, Deep Color); HDCP 1.4 Compatible
Built-in scaler on each output port to support the scaling function for different video resolutions
Seamless Switch™– provides continuous video streams, real-time switching and stable signal transmission
Audio-enabled
Video Output
Interfaces 4 x HDMI Type A Female (Black)
Impedance 100 Ώ
Max. Distance Up to 15m
Video
Max. Data Rate 6.75 Gpbs (2.25 Gbps Per Lane)
Max. Pixel Clock 225 MHz
Compliance HDMI (3D, Deep Color)
HDCP 1.4 Compatible
Consumer Electronics Control (CEC)
Max. Resolution Up to 1920 x 1080
Audio
Output 4 x Captive Screw Connector, 5 pole
* Audio signal type: stereo, balanced/unbalanced.
Power Consumption 23.13W:108BTU
Environmental
Operating Temperature 0 – 40°C
Storage Temperature -20 – 60°C
Humidity 0 – 80% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.58 kg ( 1.28 lb )
Dimensions (L x W x H) 35.20 x 23.80 x 2.33 cm
(13.86 x 9.37 x 0.92 in.)
Carton Lot 2 pcs
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Package Contents
1x VM8804 4-Port HDMI Output Board with Scaler
4x Terminal Blocks
1x User Instructions
