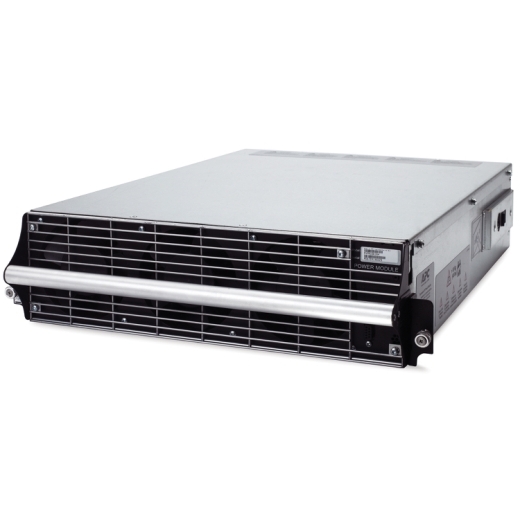

APC SYPM10K16H Symmetra PX Power Module, 10/16kW, 400V

APC Symmetra PX Power Module, 10/16kW, 400V
Main Input Voltage 400 V 3 phases
Main Output Voltage 230 V 400 V 3 phases
Rated power in W 16000 W
Rated power in VA 16000 VA
Output connector type Hard wire 5-wire (3P + N + E) 1
Provided equipment Installation guide
Number of battery filled slots 0
Number of battery free slots 0
Additional information Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage
Network frequency 40…70 Hz
Number of input connectors 1 hard wire 5-wire (3P + N + E)
Input voltage limits 340…477 V
Maximum input current 33 A
Max short time withstand current 30 kA
Input harmonic distortion Less than 5 % for full load
Input Power Factor at Full Load 0.99
Maximum configurable power in W 16000 W
Harmonic distortion Less than 2 %
Output frequency 50/60 Hz +/- 3 Hz user adjustable +/- 0.1 Hz sync to mains, 50 Hz +/- 0.1 % for 50 Hz nominal unsynchronised
Crest factor Unlimited
UPS type Double conversion online
Output voltage tolerance +/- 1% static and +/- 5% at 100% load step
Output harmonic distortion < 2% for 0 to 100% linear load and < 6% for full non-linear load Output overload operation 10 minutes at 125% and 60 seconds at 150% Ambient air temperature for operation 0…40 °C Relative humidity 0…95 % Operating altitude 0...3333 ft Ambient air temperature for storage -15…40 °C Storage Relative Humidity 0…95 % Storage altitude 0.00…4572.00 m Acoustic level 63 dBA Heat dissipation 2573 Btu/h NEMA degree of protection NEMA 1 Compatible Spare parts- WSYPM10K16H
