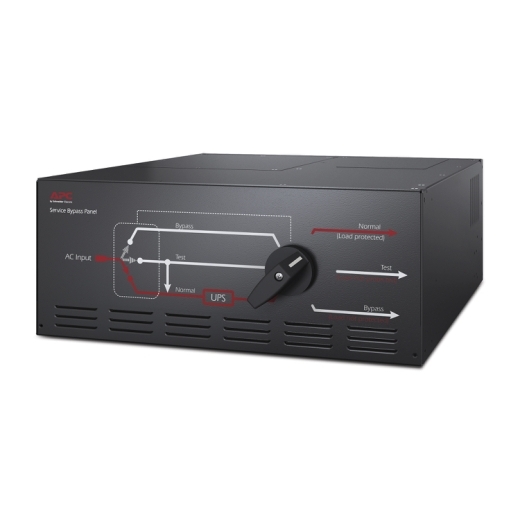

APC SBP20KP Service Bypass Panel 200/208/230/240V MBB 125A HW

APC Service Bypass Panel- 230V; 100A; MBB; Hardwire input; IEC-320 output- (8) C13 (2) C19
Main Input Voltage 200 V, 208 V, 220 V, 230 V, 240 V, 380 V 3 phases, 400 V 3 phases, 415 V 3 phases
Main Output Voltage 200 V, 208 V, 220 V, 230 V, 240 V
Output connector type Hard wire 3-wire (H N + E) 1, Hard wire 3-wire (2P + E) 1
Number of rack unit 4U
Number of cables 1
Provided equipment- Installation guide, Rack mounting brackets, User manual
Network frequency50/60 Hz
Number of input connectors 1 hard wire 3-wire (H N + E), 1 hard wire 3-wire (2P + E), 1 hard wire 5-wire (3P + N + E)
Permissible voltage 200…240 V
Max line current 125 A
Input current limits 125 A
Load capacity 20000 VA
Power factor 0…1
Max current draw 125 A
Protection type Circuit breaker
Efficiency 99 %
Product certifications CSA, GOST
Ambient air temperature for operation -20…50 °C
Relative humidity 0…95 %
Operating altitude 0…15000 ft
Ambient air temperature for storage -40…65 °C
Storage Relative Humidity 0…95 %
Storage altitude 0.00…15240.00 m
Mounting mode- Rack mounted
