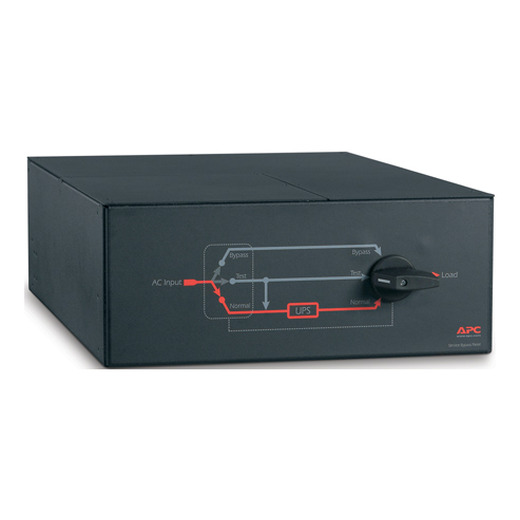

APC SBP16KP Service Bypass Panel 200/208/240 V, 100 A

APC Service Bypass Panel 200/208/240 V, 100 A, MBB, Hardwire input/output
Main Input Voltage 200 V 208 V 230 V 480 V 3 phases
Main Output Voltage 120 V 200 V 208 V 230 V
Other Output Voltage 220 V 240 V
Output connector type Hard wire 3-wire (H N + E) 1, Hard wire 3-wire (2P + E) 1, Hard wire 4-wire (2P + N + E) 1
Number of rack unit 4U
Number of cables 1
Provided equipment Installation guide
Rack mounting brackets User manual
Network frequency 50/60 Hz
Number of input connectors 1 hard wire 3-wire (H N + E), 1 hard wire 3-wire (2P + E), 1 hard wire 4-wire (2P + N + E), 1 hard wire 5-wire (3P + N + E)
Permissible voltage 200…240 V
Max line current 100 A
Input current limits 100 A
Load capacity 20000 VA
Power factor 0…1
Max current draw 100 A
Protection type Circuit breaker
Efficiency 99 %
Product certifications CSA GOST
Standards EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Ambient air temperature for operation -20…50 °C
Relative humidity 0…95 %
Operating altitude 0…15000 ft
Ambient air temperature for storage -40…65 °C
Storage Relative Humidity 0…95 %
Storage altitude 0.00…15240.00 m
Mounting mode- Rack mounted
