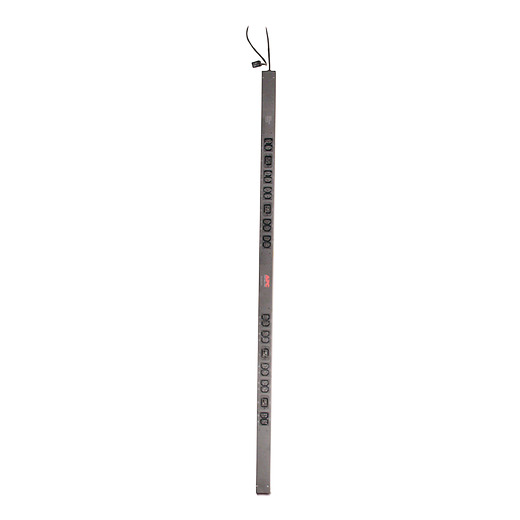

APC AP7552 Rack PDU,Basic, Zero U, 16A, 230V, (20)

APC Rack PDU,Basic, Zero U, 16A, 230V, (20) C13 & (4) C19 , IEC C20
It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 16A and operates at 230V. The PDU features 20 IEC 60320 C13 outlets and 4 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. It includes a 10-foot power cord with an IEC 60309 16A plug. The unit is designed for reliable power distribution and includes an installation guide, rack mounting brackets, and a toolless mounting kit.
Colour Black
product or component type PDU
PDU type Basic
Cord length 3.05 m
Number of cables 1
Provided equipment- Installation guide, Rack mounting brackets, Toolless mounting kit
Input Voltage 200 V, 208 V, 230 V
Ouput Voltage 230 V
Mounting preference No preference
Input Plug Type IEC 60320 C20
Rack units 0U
Mounting position Vertical
Input current limits 16 A
Load capacity 3680 VA
Network frequency 50/60 Hz
Outlet type and quantity 20 IEC 60320 C13, 4 IEC 60320 C19
Ambient air temperature for operation 0…45 °C
Relative humidity 5…95 %
Operating altitude 0…10000 ft
ambient air temperature for storage -25…65 °C
Storage Relative Humidity 5…95 %
Storage altitude 0.00…15240.00 m
Mounting mode- Rack mounted
Compatible PDU- AP9569, EPDU1016B, EPDU1016M, EPDU1016S
Compatible Mounting- AR7711
